DC80W
Current Location:DC Gear Reduction >> DC80W
    Model:DC80W
  • 1，This series of motors has 30, 50, 80W
  • 2, support positive and negative, adjustable speed, durable
  • 3, multi-speed optional, large torque, stable and reliable
  • quality
  • 4, widely used in barbecue motors, assembly lines, etc
Detailed introduction
Technical Parameters
Rated power Rated voltage No-load speed Rated speed Rated torque Rated current Weight
30W DC12V 10RPM 7.5RPM 80kg.cm 4A 2.8kg
30W DC12V 18RPM 14RPM 80kg.cm 4A 2.8kg
30W DC12V 30RPM 24RPM 67kg.cm 4A 2.8kg
30W DC12V 45RPM 36RPM 40kg.cm 4A 2.8kg
30W DC12V 60RPM 48RPM 33kg.cm 4A 2.8kg
30W DC12V 90RPM 72RPM 23kg.cm 4A 2.8kg
30W DC12V 120RPM 96RPM 17kg.cm 4A 2.8kg
30W DC12V 180RPM 140RPM 13kg.cm 4A 2.8kg
30W DC12V 300RPM 240RPM 6.5kg.cm 4A 2.8kg
30W DC12V 600RPM 480RPM 3.8kg.cm 4A 2.8kg
Rated power Rated voltage No-load speed Rated speed Rated torque Rated current Weight
50W DC12V 6.5RPM 5RPM 100kg.cm 6.5A 3.8kg
50W DC12V 8RPM 6RPM 100kg.cm 6.5A 3.8kg
50W DC12V 12RPM 9.6RPM 100kg.cm 6.5A 3.8kg
50W DC12V 20RPM 16RPM 100kg.cm 6.5A 3.8kg
50W DC12V 24RPM 19RPM 100kg.cm 6.5A 3.8kg
50W DC12V 30RPM 24PM 87kg.cm 6.5A 3.8kg
50W DC12V 40RPM 32RPM 67kg.cm 6.5A 3.8kg
50W DC12V 60RPM 48RPM 43kg.cm 6.5A 3.8kg
50W DC12V 80RPM 60RPM 33kg.cm 6.5A 3.8kg
50W DC12V 120RPM 96RPM 22kg.cm 6.5A 3.8kg
50W DC12V 240RPM 192RPM 11kg.cm 6.5A 3.8kg
Rated power Rated voltage No-load speed Rated speed Rated torque Rated current Weight
80W DC12V 8.5RPM 6RPM 200kg.cm 10A 4.6kg
80W DC12V 10.5RPM 8RPM 200kg.cm 10A 4.6kg
80W DC12V 16RPM 13RPM 200kg.cm 10A 4.6kg
80W DC12V 26RPM 21RPM 200kg.cm 10A 4.6kg
80W DC12V 32RPM 25RPM 175kg.cm 10A 4.6kg
80W DC12V 40RPM 32RPM 140kg.cm 10A 4.6kg
80W DC12V 53RPM 42RPM 105kg.cm 10A 4.6kg
80W DC12V 80RPM 60RPM 70kg.cm 10A 4.6kg
80W DC12V 120RPM 96RPM 52kg.cm 10A 4.6kg
80W DC12V 160RPM 128RPM 35kg.cm 10A 4.6kg
80W DC12V 210RPM 168RPM 26kg.cm 10A 4.6kg
80W DC12V 320RPM 250RPM 18kg.cm 10A 4.6kg
Rated power Rated voltage No-load speed Rated speed Rated torque Rated current Weight
Dimensions(unit: mm)
12V 30W size (weight:2.8kg)
    • 12V 50W size (weight:3.8kg)
    • 12V 80W size (weight:4.6kg)

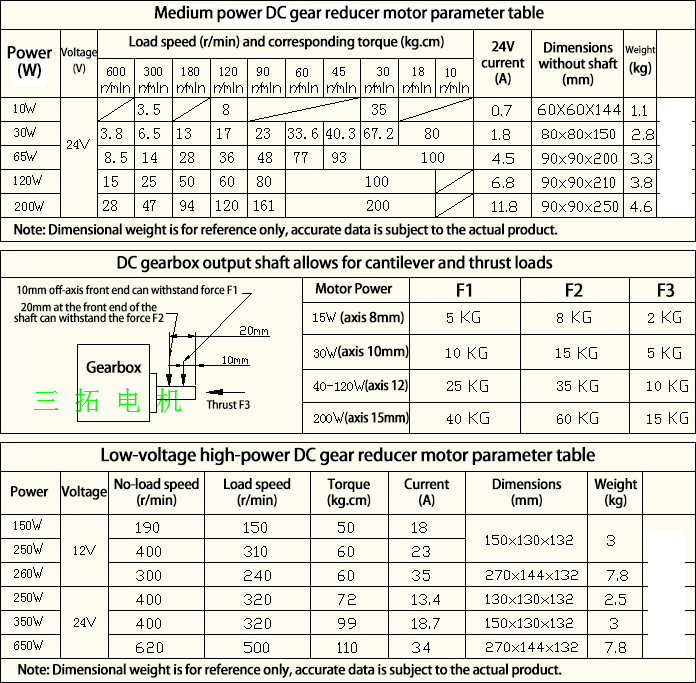

    • The parameters of this series of DC gear motor are shown in the table below

  • >> View：24V 30、65、120、200W
