GW4058(With brushless motor)
Current Location:DC Worm Gear Reduction >> GW4058(With brushless motor)
- Model:GW4058(With brushless motor)
- 1, single/double output shaft, strong power
- 2, can be reversed, support speed
- 3, with current protection, Hall signal output
- 4, suitable for applications such as robots, tank model drives
Detailed introduction

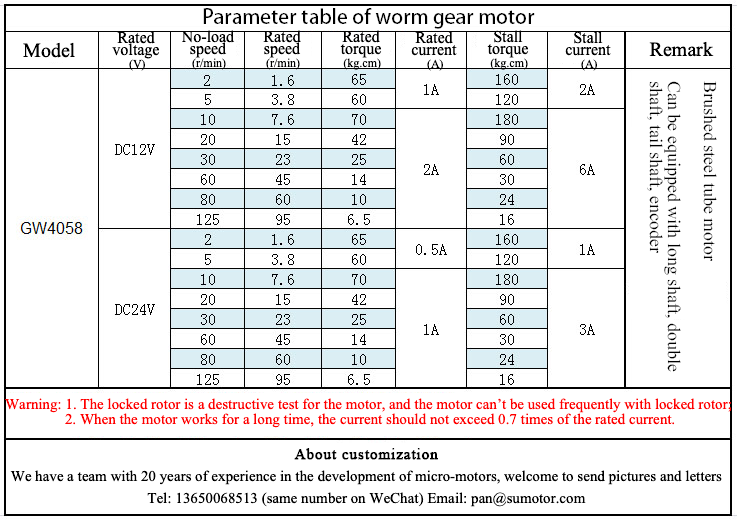

Technical Parameters
Overview:
     1. The sturdy gearbox can withstand the locked rotor, and the motor has current protection to avoid burning the motor when overloaded, ensuring the life of the real brushless motor;
     2. Both the unreduced shaft and the decelerated output shaft are supported by ball bearings to ensure high efficiency;
     3. The five-wire type ensures that with suitable accessories, it can realize forward and reverse rotation, PWM speed regulation, automatic control of Hall signal output, and complete functions;
     4. The self-locking force of the geared motor is small, please contact customer service before purchasing if you have requirements;
     5. The non-decelerated high-speed motor rotates one circle of yellow line to output a Hall signal. After deceleration, the output shaft rotates one circle of yellow line to output signal number = reduction ratio, see the product label for the reduction ratio;
Overview:
     1. The sturdy gearbox can withstand the locked rotor, and the motor has current protection to avoid burning the motor when overloaded, ensuring the life of the real brushless motor;
     2. Both the unreduced shaft and the decelerated output shaft are supported by ball bearings to ensure high efficiency;
     3. The five-wire type ensures that with suitable accessories, it can realize forward and reverse rotation, PWM speed regulation, automatic control of Hall signal output, and complete functions;
     4. The self-locking force of the geared motor is small, please contact customer service before purchasing if you have requirements;
     5. The non-decelerated high-speed motor rotates one circle of yellow line to output a Hall signal. After deceleration, the output shaft rotates one circle of yellow line to output signal number = reduction ratio, see the product label for the reduction ratio;
Dimensions(unit: mm)
Standard shaft
Extended shaft
Double shaft
